Corded SIP Phones
All Telebroad's recommended phones are POE compatible - meaning that they are powered by the Ethernet cable that also provides the network connection. You will, however, need to get a separate power adapter with the listed voltage if your network infrastructure does not supports this technology.
- * Expansion module EXP43 offers a 4.3" color display and 60 additional soft keys (20 physical keys and three pages.) Three modules can be daisy-chained to a phone for a total of extra 180 keys!
- ** Expansion module EXP40 offers 40 additional soft keys (20 physical keys and two pages.) Six modules can be daisy-chained to a phone for a total of extra 240 keys!
- *** The T48S has no physical softkeys. Instead, 29 programmable touchscreen keys are available as line or soft keys.
- * Expansion module EXP50 offers a 4.3" color display and 60 additional soft keys (20 physical keys and three pages.) Three modules can be daisy-chained to a phone for a total of extra 180 keys!
- * The phone has no physical soft keys. Instead, 29 (SIP-57W) or 27 (SIP-58A) programmable touchscreen keys are available as line or soft keys.
- ** Expansion module EXP50 offers a 4.3" color display and 60 additional soft keys (20 physical keys and three pages.) Three modules can be daisy-chained to a phone for a total of extra 180 keys!
- *** Camera model CAM50 for video calls and conferencing, can be connected to the SIP-58A. The camera is sold separately.
- * The VVX601 model has no physical soft keys. The touch screen offers 16 programmable soft and line keys.
- * Expansion module EMP50 offers a 5" color display and 90 additional line keys (30 physical keys and three pages).
For telephone's mounting choices click here
For telephone headsets choices click here
For replacement handsets for your existing phone click here
USB Wi-Fi adaptor - The Yealink WF40 and Yealink WF50 Wi-Fi USB dongle can connect your Yealink SIP phone to an existing wireless network. The plug-and-play device is a convenient solution for offices with Wi-Fi only network or for phones that are too far from an Ethernet port.
Bluetooth adaptor - The Yealink BT-41 dongle adds Bluetooth functionality to your Yealink SIP phone and enables it to connect a wide variety of Bluetooth Headsets.

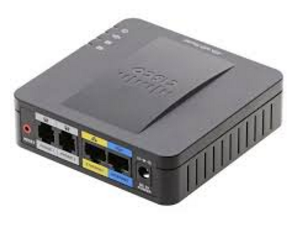

ATA adaptor - Analog Telephone Adaptor is a device that connects traditional analog telephones and fax machines to a VoIP network. You may want to buy one if you have some standard telephony equipment that works well for what it does but you want to use it with your VoIP network. In other words, ATA allows you to avoid having to operate and maintain two networks (standard and VoIP), keeping equipment that is functional but without benefiting from the advantaged of VoIP.

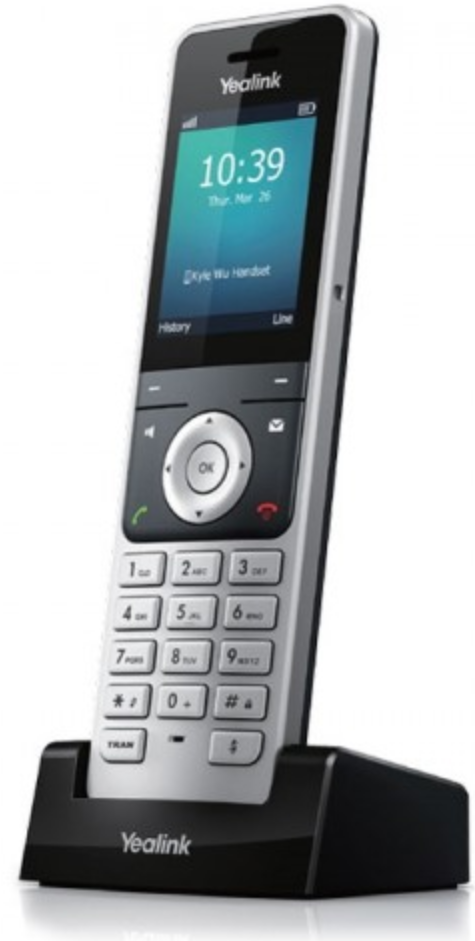

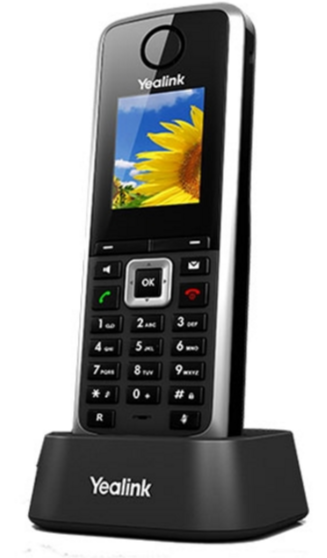

Cordless SIP Phones
Cordless SIP phones (that work with a VoIP network) offer the convenience of being able to step away from your desk. They are a good choice for people who prefer talking into a handset over using wireless headsets.

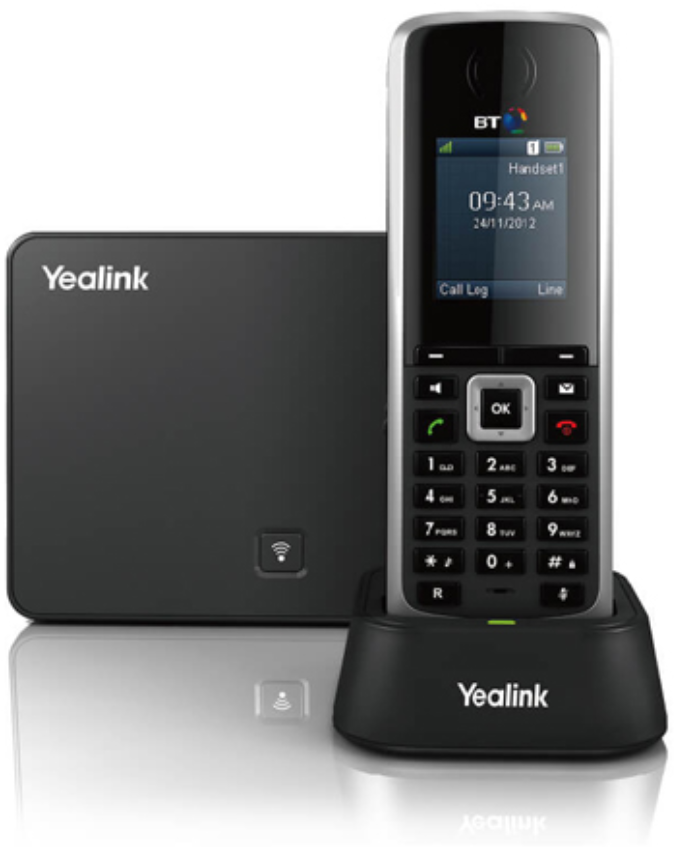

Cordless phones are also known as DECT phones. DECT stands for Digital Enhanced Cordless Technology. The DECT technology allows a wireless connection between the handset and base station. The base station provides the connectivity to the SIP network. The talk range between handsets and the base station can be doubled with a repeater. Repeaters can also circumvent thick walls and other obstructions to help with indoor reception issues.
A base station is not limited to one cordless phone. It can handle multiple accounts and handsets (extra handsets need to be bought separately). Each handset can, in turn, handle several calls simultaneously.When setting up cordless phones, in most cases you would want a separate phone number for each handset, but there is also an option to share numbers among several workers.
165 feet indoors/ 985 feet outdoors

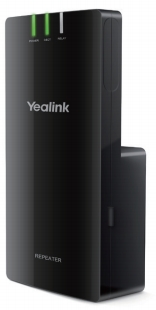

Up to 6 repeaters per base station
165 feet indoors/ 985 feet outdoors
W80DM – up to 30 Base stations
W90DM – up to 60 Base stations in regular configuration or 600 base stations in VIM configuration
- * The W59R phone is dust resistant, water resistant (can withstand 3.3 feet submersion for 30 minutes), and shock resistant (can withstand falls from 8.2 feet).
- ** A quick charge feature provides 2 hours talk time in ten minutes.
- *** Compatible with Yealink W60B, W70B, W80B, or W90.
- **** The W80/W90 can be bought or configured as either a DECT manager or a base station. For range extension the system need to be set up in a multi-cell configuration with one W80DM or W90DM (DECT manager) supporting up to thirty W80B or sixty W90B base stations. The W90 can also be deployed in VIM (virtual integration manager) configuration where ten W90DM units can support up to 600 base stations!
- If you use the W59R in with W60 or W70 base stations you can use the RT30 repeater for range extension.

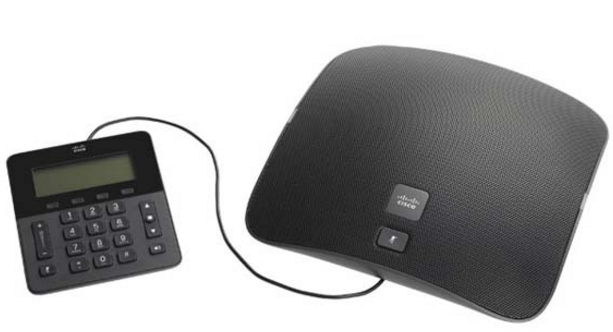

Selecting a conference telephone mostly depends on the size of the room where it will be used. In the following table this is indicated by the room size and microphone radius specifications. Larger rooms can be accommodated by external microphones (bought separately) to extend the reception range.
* The Yealink CP 960 has a 5" touch screen.
** The Yealink CP 930W is a battery powered DECT (wireless) phone that pairs with the Yealink W60B, W70B, W80B, or W90B base stations for a wireless coverage of up to 165 feet indoors. The phone itself is cordless and does not support POE (the base station it connect to does support POE.) The battery provides up to 24 hours of talk time and 360 hours standby time.
